Choke Bodies and Choke Beans for Oil and Gas
High-Performance Flow Control Components for Critical Pressure Management
Choke Bodies and Choke Beans Component Manufacturing
Chokes and choke beans are fundamental to controlling well pressure and regulating flow during drilling, completion, and production operations. Align Manufacturing supplies precision-machined choke bodies, housings, and choke beans to energy OEMs and equipment builders worldwide, ensuring durable, erosion-resistant flow control even under extreme operating conditions.
Our choke components are manufactured in trusted offshore facilities with rigorous quality oversight, providing Western-level manufacturing standards with supply chain transparency built in.
key features
Choke Components We Manufacture
- Choke Bodies (Fixed and Adjustable)
- Choke Bonnets and Housings
- Positive Choke Beans
- Adjustable Choke Stems
- Seat Inserts and Retainers
- Replaceable Wear Sleeves
All components are machined to customer prints or collaboratively reverse-engineered based on operating conditions.
Choke Beans: Flow Control You Can Trust
Choke beans are the heart of precision flow regulation. Align manufactures choke beans in a wide range of materials and bore sizes, delivering reliable performance in abrasive, high-pressure service.
| Standard Sizes | 1/8" to 2-1/2" flow bores |
| Material Options | 410SS, 17-4PH SS, Inconel 718, Tungsten Carbide-lined |
| Pressure Ratings | Up to 15,000 psi (API 6A standard) |
| Bore Finishes | Honed and polished for extended wear life |
| Profile Options | Positive beans, adjustable beans |
| Erosion Resistance | Carbide inserts available for extreme sand service |
Overview —
Applications for Choke Components
Align’s choke bodies and choke beans are used in:
- Well Testing Skids
- Flowback Manifolds
- Choke and Kill Manifolds
- Surface Wellheads and Trees
- Offshore Production Systems
- Frac Isolation Systems
Applications
Technical Capability Snapshot
| Machining Tolerances | ±0.0005" for sealing surfaces and bores |
| Surface Hardness | Up to 68 HRC with tungsten carbide lining |
| Coating/Cladding | Compatible with Xylan, PTFE, Inconel cladding |
| Compliance | Full MTRs and batch documentation |
| Compliance | API 6A, NACE MR0175, ISO 9001 |
Each choke component undergoes surface finish inspection, dimensional verification, and hardness testing to ensure it meets the demands of high-erosion, high-pressure service.

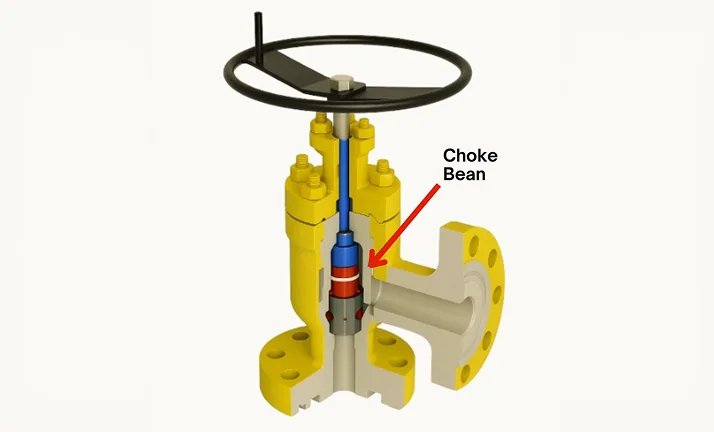

Choke Components in Manifold and Flowline Systems
Choke assemblies are critical elements within larger manifold systems, controlling flowback pressure during hydraulic fracturing, well testing, and production operations. Our choke bodies and beans integrate into manifold modules alongside plug valves, gate valves, and pressure fittings — providing a seamless fit and reliable service life.
By ensuring precision-machined tolerances and high-quality material sourcing, Align helps manifold builders and flowline OEMs extend uptime and reduce maintenance cycles.
Align MFG Choke Components
Why OEMs and Energy Equipment Providers Choose Align
- Predictable quality from offshore production centers
- Flexible batch sizes — prototyping to high-volume production
- Material selection support for erosion and sour service
- Dimensional consistency and full documentation
