Manifold Components for Oil and Gas
Precision-Manufactured Manifold Parts for Critical Flow Control
Manifold Component Manufacturing

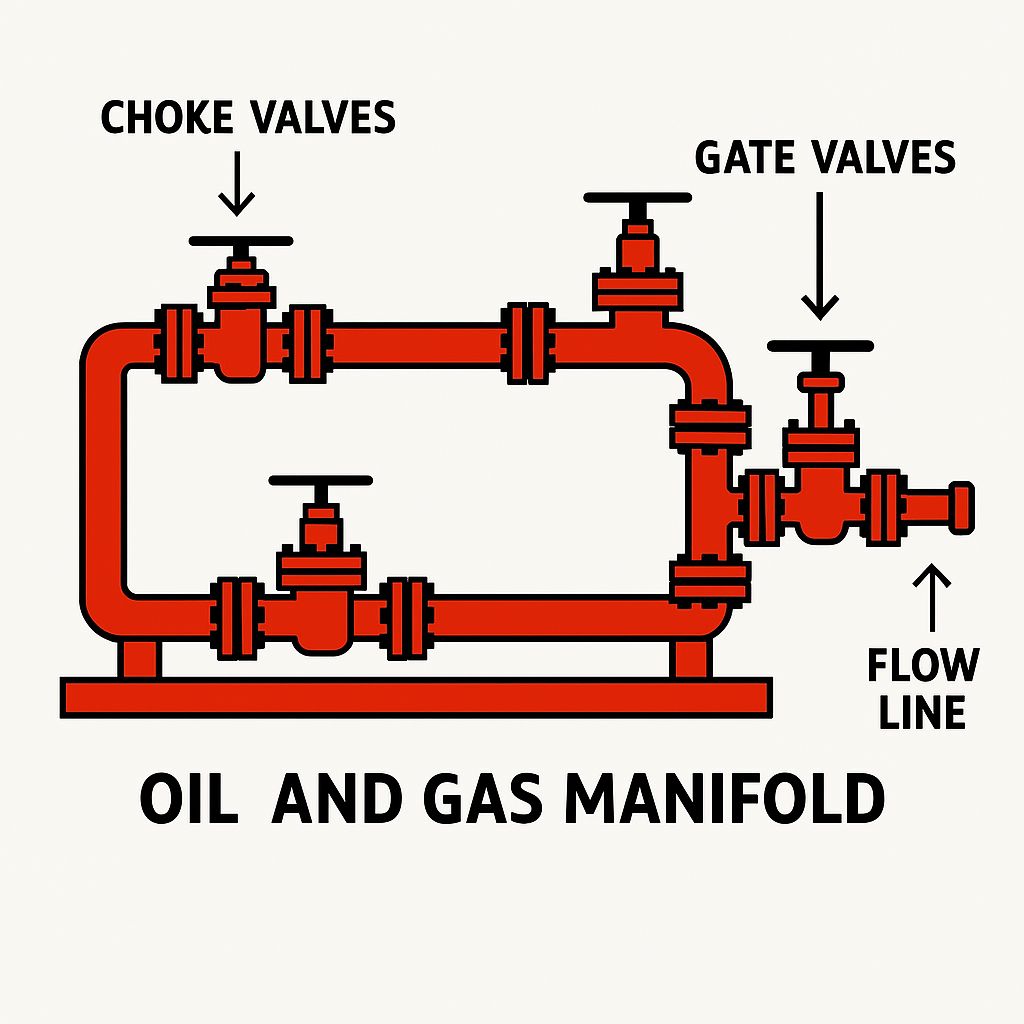

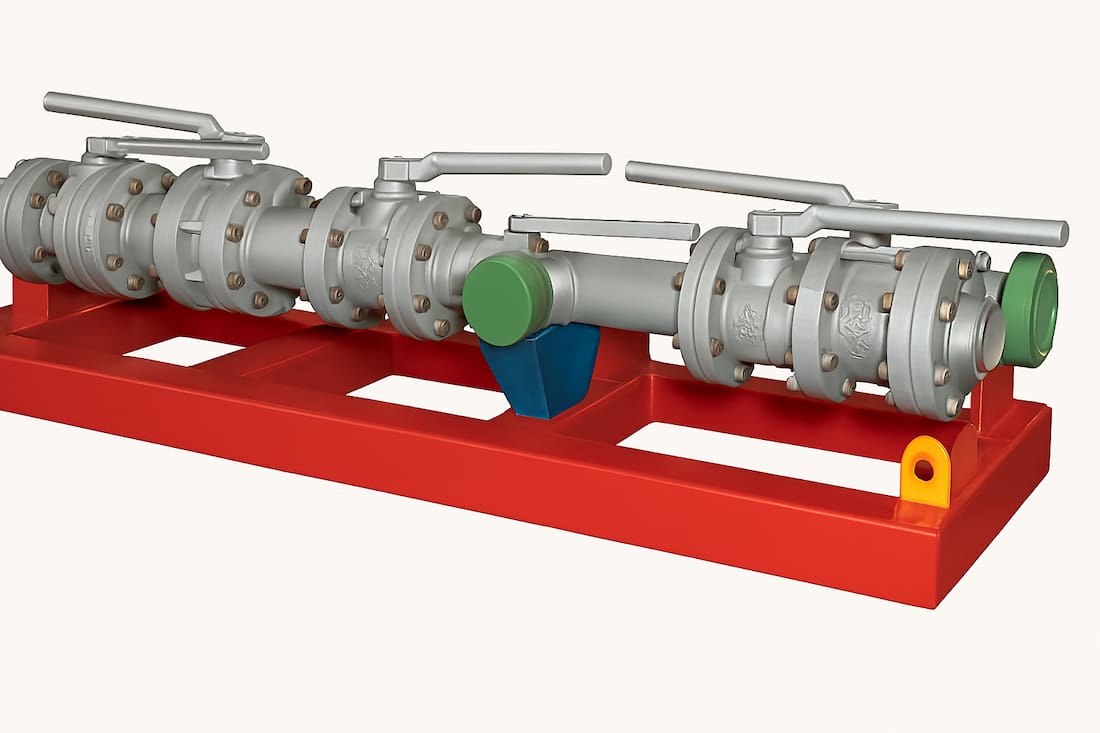

Manifolds are at the heart of pressure control systems in oil and gas operations — directing, isolating, and managing fluid flow across drilling, stimulation, and well testing applications. At Align Manufacturing, we support leading OEMs and equipment integrators with high-precision manifold components built for performance in extreme conditions.
Our team machines and fabricates tees, crosses, flanges, valve bodies, and custom subassemblies to exacting tolerances using oilfield-grade materials. Produced in trusted manufacturing centers across India, Vietnam, and Thailand, our parts meet U.S. expectations for quality, documentation, and material compliance.
key features
Designed for Real-World Oilfield Demands
We build every manifold component with upstream realities in mind: high-pressure, high-cycle, sand-laden, and corrosive environments. Align’s production model emphasizes:
- U.S. engineering standards applied at our Asian production sites
- On-site QA teams for dimensional and visual inspection
- Traceable material sourcing with full MTRs and compliance packages
- Predictable delivery timelines with built-in logistics coordination
From one-off flow loop components to high-volume manifold part production, we provide repeatable accuracy and end-to-end visibility.
Applications We Support
- Frac Manifolds (Zipper Systems, Missile Trailers)
- Choke and Kill Manifolds (Well Control)
- Test Manifolds (Surface Well Testing)
- Cementing and Coil Tubing Manifolds
- Flowback and Production Systems
Common Components
Manifold Components We Commonly Manufacture
- Inlet & outlet headers (machined or fabricated)
- Tees, crosses, and elbows (API 6A-rated)
- Valve bodies for plug or gate valves
- Spacer spools and adapter blocks
- Threaded and flanged connectors
- Union subassemblies and alignment guides
- Flow iron replacement parts (for frac/kill manifolds)
Specifications
Technical Specifications
| Pressure Ratings | Up to 15,000 psi (API 6A & 16C systems) |
| Part Dimensions | Up to 12" OD and 300 lbs/component |
| Material Options | AISI 4130, 410SS, Inconel 625, Duplex, Clad Steel |
| Machining Tolerances | Down to ±0.0005" for sealing surfaces |
| Surface Finishing | Nitrided, cladded, Xylan/PTFE prepped |
| Compliance & Docs | API 6A, NACE MR0175, ISO 9001, MTRs provided |
Align MFG Manifolds
Why System Builders and OEMs Choose Align
We help hardware innovators and established OEMs get ahead of offshore delays by offering a manufacturing partnership that’s both cost-efficient and professionally managed.
- Reduced supply chain friction with Asia-based production + Western-style QA
- Fast-turn quoting and prototyping
- Tight batch-to-batch tolerance control
- Expertise in reverse engineering legacy flow components
Overview —
Resources
In addition to our manufacturing capabilities, Align MFG plays a crucial role in optimizing supply chains. Our expertise in consolidating shipments, especially in regions like Vietnam, India, and Thailand , significantly reduces logistics costs and enhances efficiency, offering a reliable alternative to traditional sourcing from China. You can read more details about this below.
