Shell Molding
Process —
Why
Shell Molding?
Shell molding is renowned for its high dimensional accuracy and excellent surface finish, making it ideal for complex geometries that are challenging to achieve with traditional casting methods. This process is particularly effective for manufacturing components that must withstand high temperatures and pressures, such as cylinder heads in heavy-duty vehicles.
Capabilities —
Our
Shell Molding
Capabilities
Complex Design Handling
ur technology allows for the manufacture of detailed, intricate designs and complex molds that are not only robust but also consistent in quality.
Material Versatility
We utilize a variety of metals in our shell mold casting process, including carbon steel, iron, and stainless steel, ensuring that we can meet diverse industry needs and material specifications.
Precision and Quality
Each shell molded part undergoes rigorous quality control, ensuring that every component meets our high standards and your exact requirements.
Advantages —
Benefits
of Shell Molding
with Align MFG
Superior Surface Quality
Achieves smooth surfaces that often require no further finishing, reducing overall production time and cost.

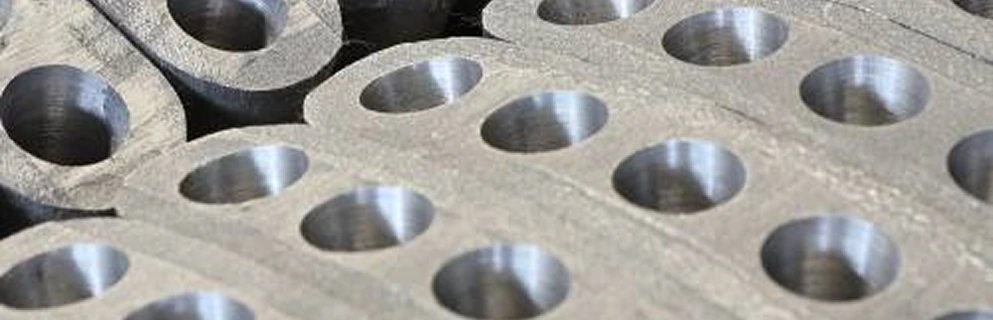

Enhanced Dimensional Accuracy
Provides tight tolerances that are crucial for complex components like cylinder heads.

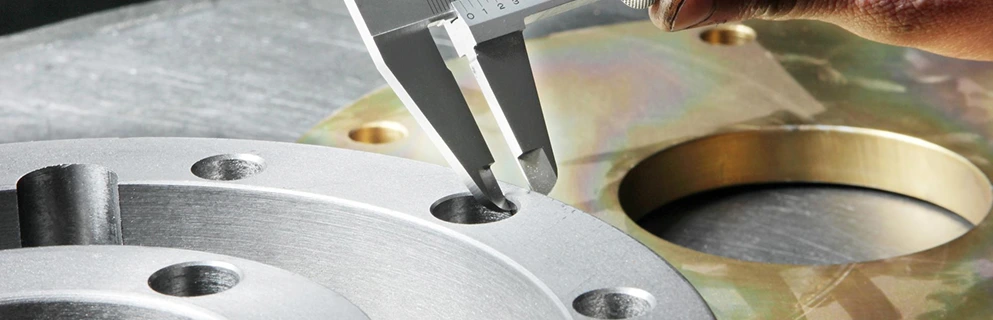

Increased Durability
Produces parts that are robust and durable, ideal for the demanding environments of truck and trailer applications.
Application in Truck and Trailer Manufacturing
Our shell molding process is particularly valuable in producing cylinder heads that are critical for the performance and longevity of truck and trailer engines. By leveraging shell molding, we can handle the demanding specifications required for these components, ensuring optimal engine performance and reliability.
FAQ
Q: What is shell molding, and why is it chosen for precision casting?
A: Shell molding is a casting process that uses a thin, hardened shell mold made from a mixture of sand and resin. It’s chosen for precision casting because it produces high accuracy and smooth surface finishes, making it ideal for parts requiring fine detail and tight tolerances.
Q: What types of metals can be used in shell molding, and how do they influence final product quality?
A: Metals like steel, cast iron, aluminum, and copper alloys are commonly used in shell molding. Steel and cast iron provide excellent strength and durability, making them suitable for high-stress applications, while aluminum offers a lightweight option. These metals work well with the shell molding process, resulting in high-quality parts with smooth finishes and strong mechanical properties.
Q: How does shell molding achieve detailed and complex shapes?
A: Shell molding uses a hardened resin-sand mixture to form precise, thin molds that capture intricate details and complex shapes. The molds are rigid and hold their form well, allowing molten metal to fill small cavities accurately, producing parts with complex geometries and fine details.
Q: What are the primary advantages of shell molding over sand casting?
A: Shell molding offers better dimensional accuracy, smoother surface finishes, and the ability to capture fine details compared to traditional sand casting. It also has a faster production cycle and requires less post-casting machining, making it more efficient and suitable for higher-quality, precision components.
Q: What industries commonly use shell molding, and for what kinds of applications?
A: Industries such as automotive, aerospace, and industrial machinery commonly use shell molding. It’s ideal for applications that require precision components like gear housings, engine parts, and brackets, where strength, durability, and intricate designs are critical for performance and reliability.
